UNIAXIAL PET GEOGRIDS

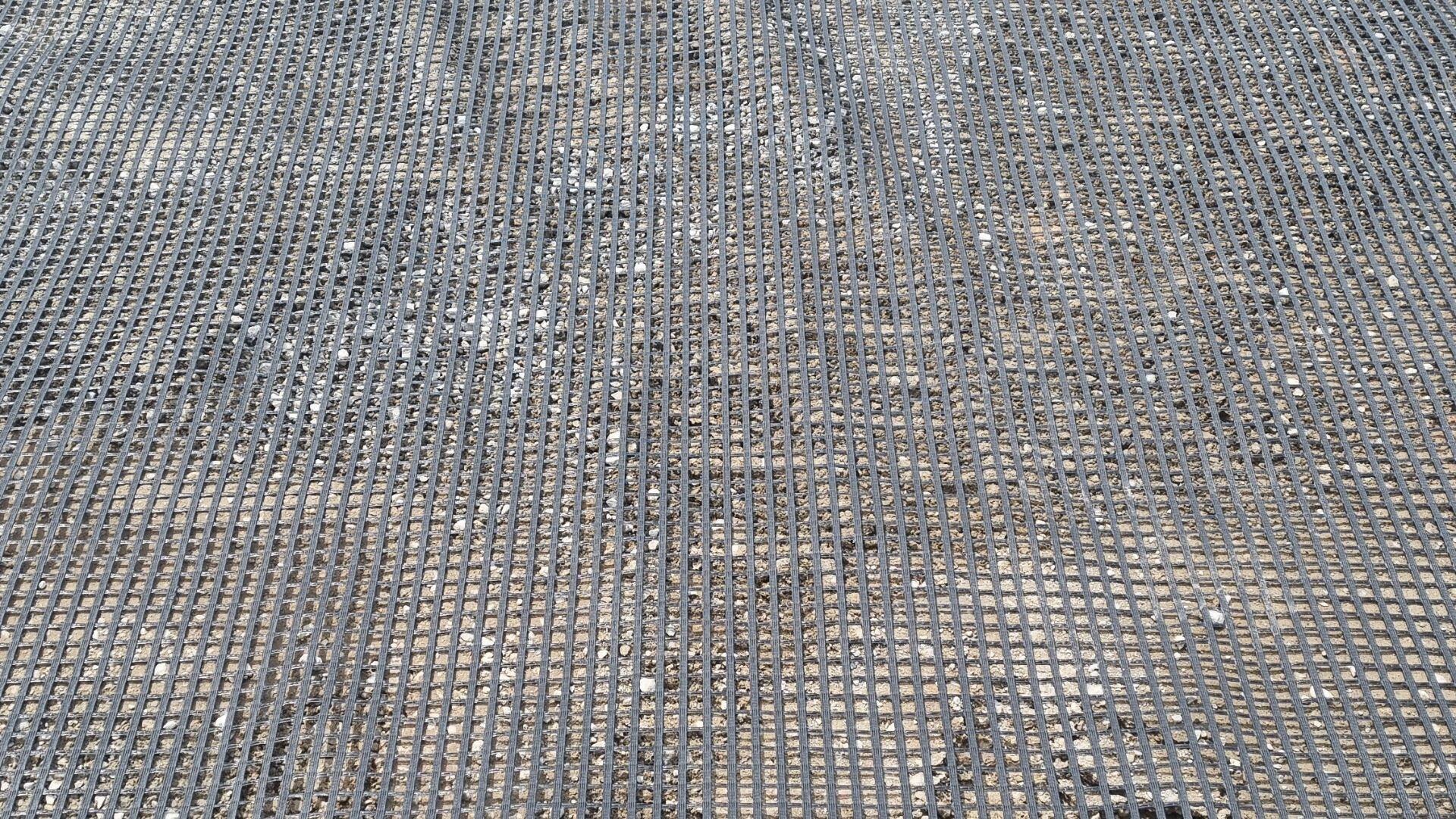

Geotex Uniaxial geogrids are high-performance manufactured soil reinforcement geosynthetics, made from high quality polyester (PET) yarns. The yarns properties consist of elevated molecular weight and remarkable tensile strength, knitted into a stable network of apertures. The resulting geometric grid shape offers robust tensile reinforcement to the soil in both vertical and horizontal orientations. Geotex Uniaxials are additionally coated with a polymer to provide high resistance to decompisition in soil environments and UV and mechanical damage protection to the fibres.

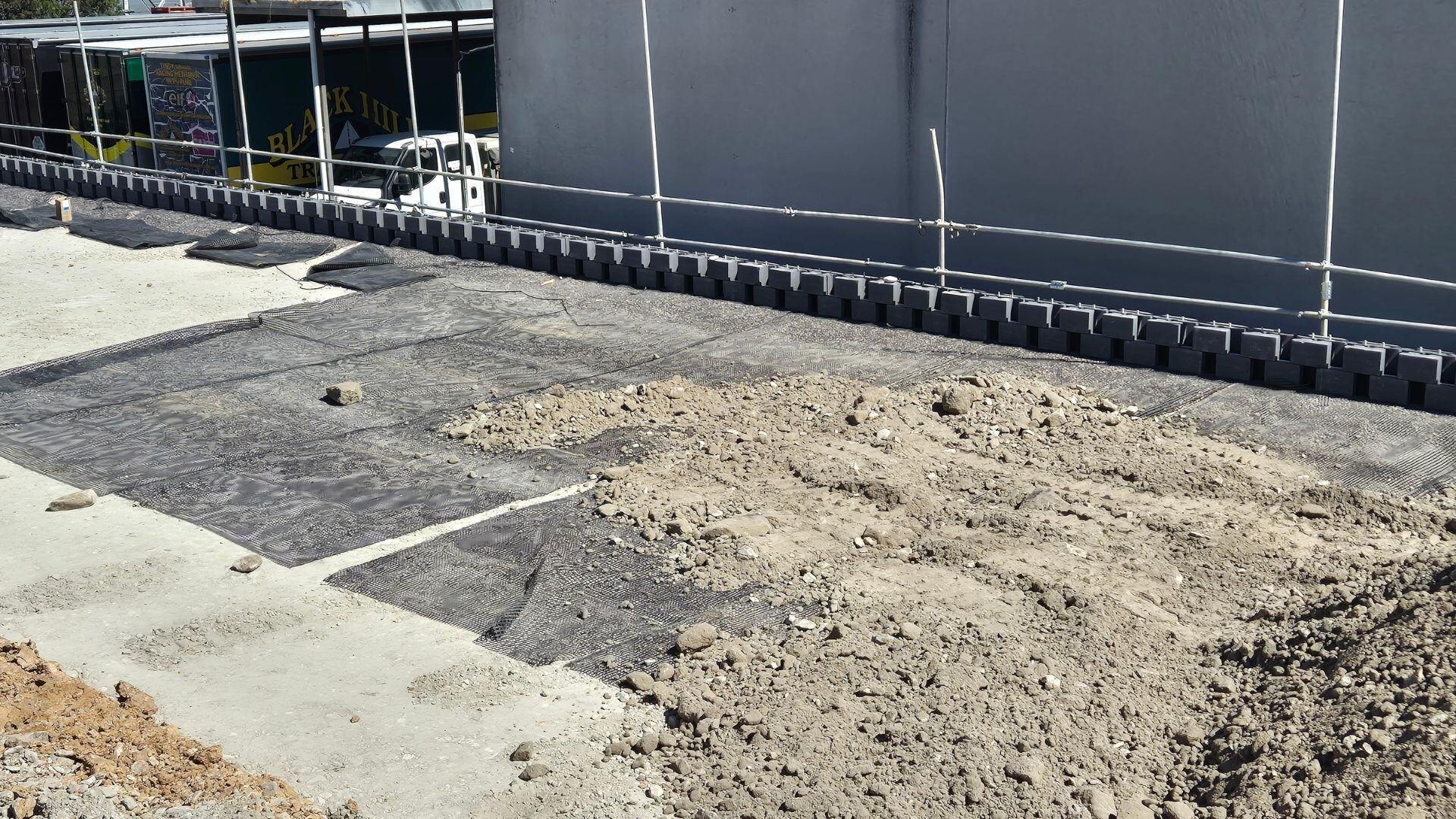

Available in different standard grades, offering various strengths and mesh sizes to suit a range of projects. Quick and versatile installation, suitable for all weather conditions. Creating a cost-effective solution for building soil walls. Ability to usilise on-site aggregates for added convenience.
To further fortify their durability across diverse environmental conditions, Geotex Uniaxial geogrids undergo a black saturation coating process. This coating not only enhances their chemical and mechanical properties but also extends their lifespan, making them suitable for a wide range of applications. vailable in different standard grades, offering various strengths and mesh sizes to suit a range of projects, these geogrids have undergone rigorous testing in laboratory settings and have demonstrated proven efficacy in countless real-world installations.
| GEOGRID PROPERTIES | UNITS | TX-45 | TX-60 | TX-80 | TX-100 | TX-120 | TX-150 |
| ULTIMATE STRENGTH MD | kN/m | 48 | 63 | 84 | 106 | 125 | 157 |
| STRAIN AT SHORT-TERM STRENGTH MD | % | 10 | 10 | 10 | 10 | 10 | 10 |
| REDUCTION FACTOR FOR CREEP RUPTURE | 120 YRS | 1.41 | 1.41 | 1.41 | 1.41 | 1.41 | 1.41 |
| CREEP LIMITED STRENGTH | kN/m | 34 | 45 | 59 | 75 | 89 | 111 |
| REDUCTION FACTOR FOR INSTALLATION DAMAGE | UNITS | TX-45 | TX-60 | TX-80 | TX-100 | TX-120 | TX-150 |
| SANDY GRAVEL | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 | |
| COURSE GRAVEL | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| ENVIRONMENTAL EFFECTS | 4<pH<9 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| LONG TERM STRENGTH | UNITS | TX-45 | TX-60 | TX-80 | TX-100 | TX-120 | TX-150 |
| SANDY GRAVEL | kN/m | 27 | 36 | 47 | 59 | 70 | 88 |
| COURSE GRAVEL | kN/m | 25 | 33 | 43 | 55 | 65 | 81 |
| WIDTH | m | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| LENGTH | m | 60 | 60 | 60 | 60 | 60 | 50 |
