High Density Polyethylene

ENQUIRE NOW

Geotex geomembranes High Density Polyethylene (HDPE), manufactured with two layers of interlocked HDPE and a layer of geomembrane heat bonded together offering increased impermeability and durability, combining the strength of geotextiles with the sealing properties of geomembranes.

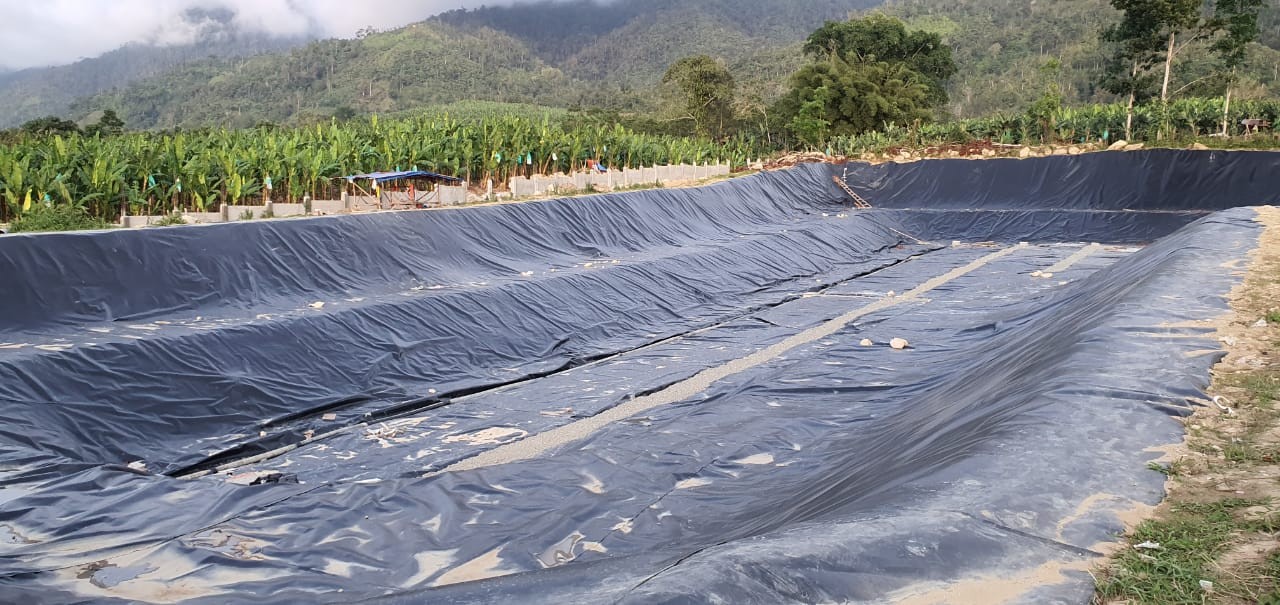

Application usages across horizontal drainage,channel lining and seepage reduction. Geotex composite liners shortens the construction time for projects and can reduce costs as installations can be done onsite without professional installers.

GEOMEMBRANE PROPERTIES	UNITS	GCL050	GCL075	GCL100	GCL150	GCL200
THICKNESS	mm	0.50	0.75	1.00	1.50	2.00
WIDTH	m	7	7	7	7	7
LENGTH	m	420	280	210	140	105
YIELD STRENGTH	kN/m	7	11	15	22	29
BREAK STRENGTH	kN/m	13	20	27	40	53
YIELD ELONGATION	%	12	12	12	12	12
BREAK ELONGATION	%	700	700	700	700	700
TEAR RESISTANCE	N	62	93	125	187	249
PUNCTURE RESISTANCE	N	160	240	320	480	640
STRESS CRACK RESISTANCE	hrs	500	500	500	500	500
U.V. RESISTANCE AFTER 1600 HRS	%	50	50	50	50	50

GEOMEMBRANE PROPERTIES	UNITS	GCL050	GCL075	GCL100	GCL150	GCL200
THICKNESS	mm	0.50	0.75	1.00	1.50	2.00
WIDTH	m	7	7	7	7	7
LENGTH	m	420	280	210	140	105
YIELD STRENGTH	kN/m	7	11	15	22	29
BREAK STRENGTH	kN/m	13	20	27	40	53
YIELD ELONGATION	%	12	12	12	12	12
BREAK ELONGATION	%	700	700	700	700	700
TEAR RESISTANCE	N	62	93	125	187	249
PUNCTURE RESISTANCE	N	160	240	320	480	640
STRESS CRACK RESISTANCE	hrs	500	500	500	500	500
U.V. RESISTANCE AFTER 1600 HRS	%	50	50	50	50	50

HIGH DENSITY POLYETHYLENE
